Description

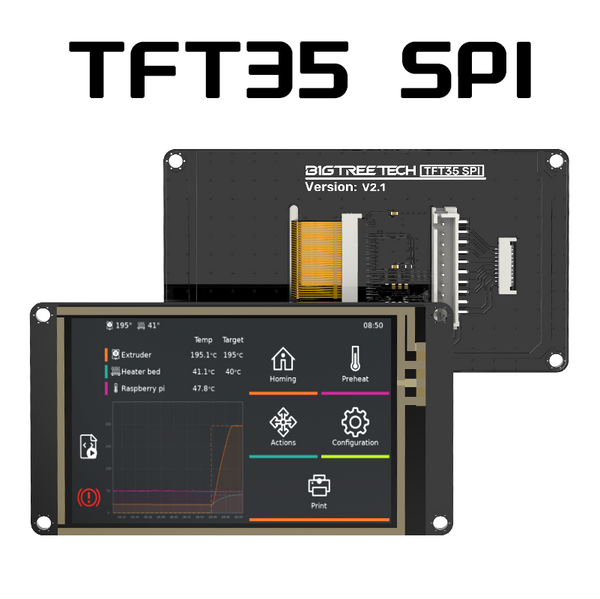

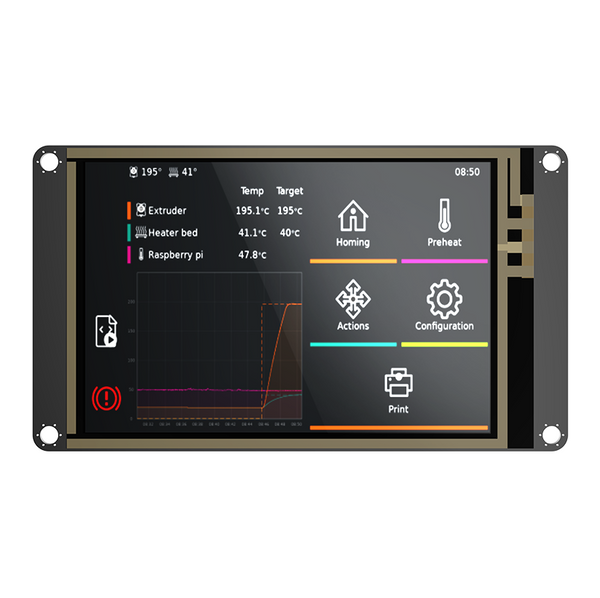

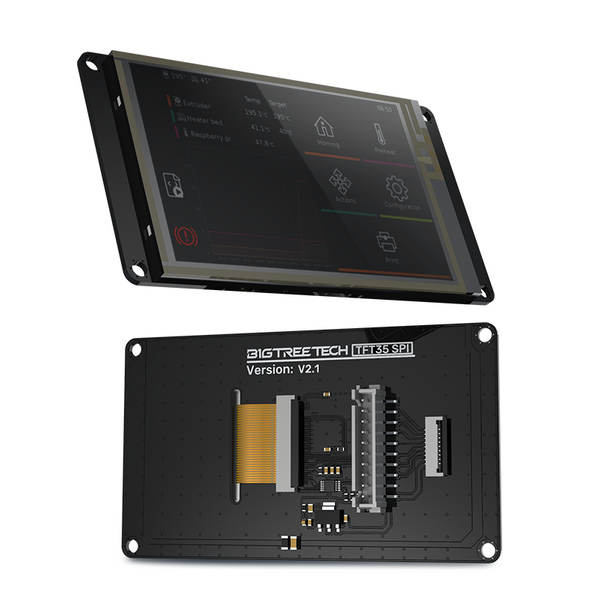

Upgrade your 3D printing experience with this 3.5-inch touchscreen for BTT CB-1 boards! Connects via SPI cable to Manta MCUs or Pi4B adapter (with IO2CAN). Note: I2C interface cable required for CM-4 boards (not included).
Features
- SPI is used for LCD display, and I2C is used for touch. The touch screen is controlled by the chip on the motherboard, which significantly reduces its cost.

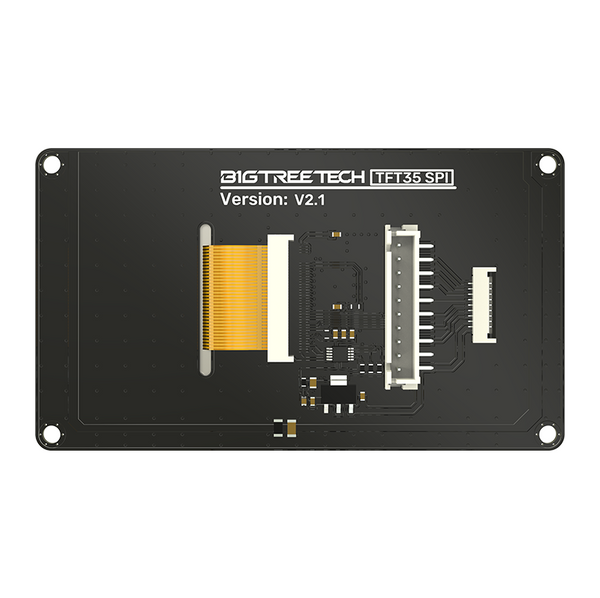

- FPC port for connecting. It is connected to the motherboard through the FPC cable, simple and convenient.
- XH2.54 terminal. Designed with XH2.54 terminal, which can communicate with the board through the terminal.
- Indicator Light. When the motherboard is powered on: the power indicator, D2 red light, lights up, indicating that the power supply is functioning normally.
Specifications
Documentation
