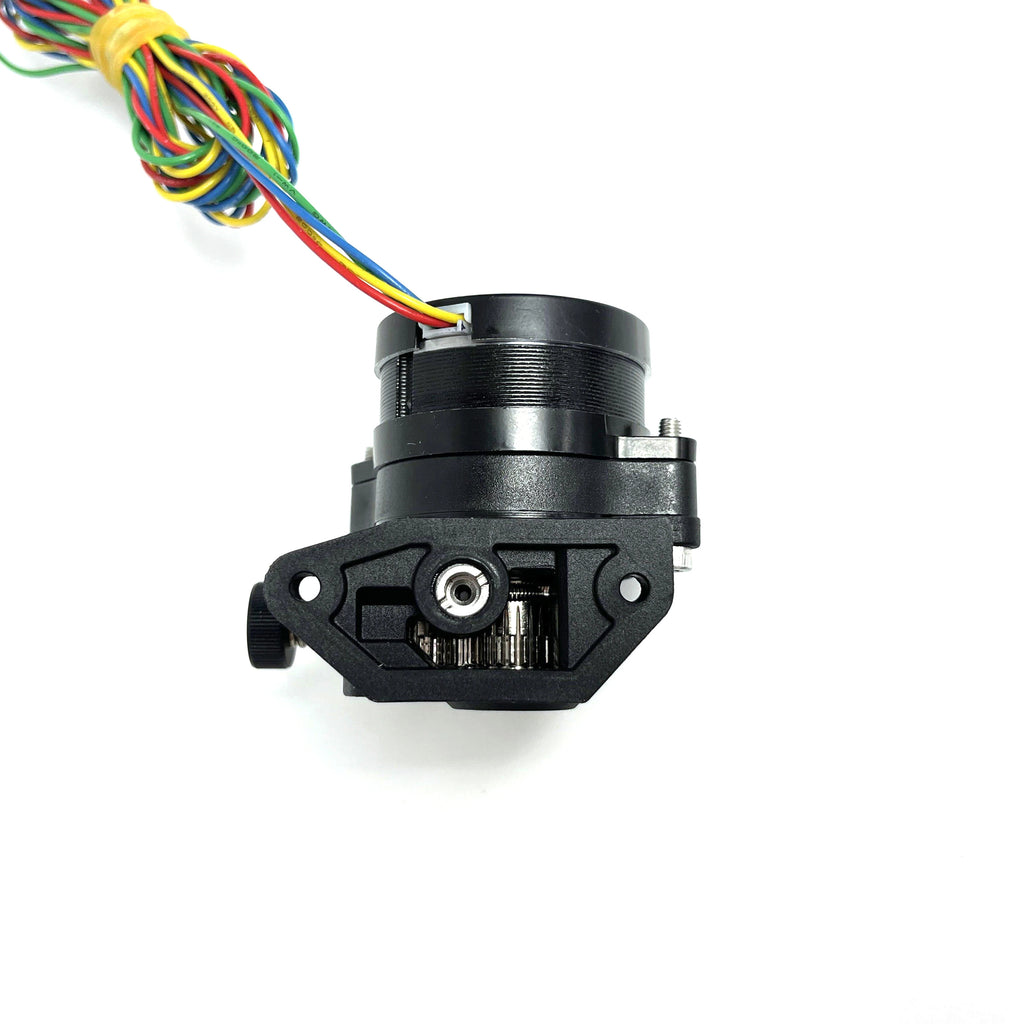

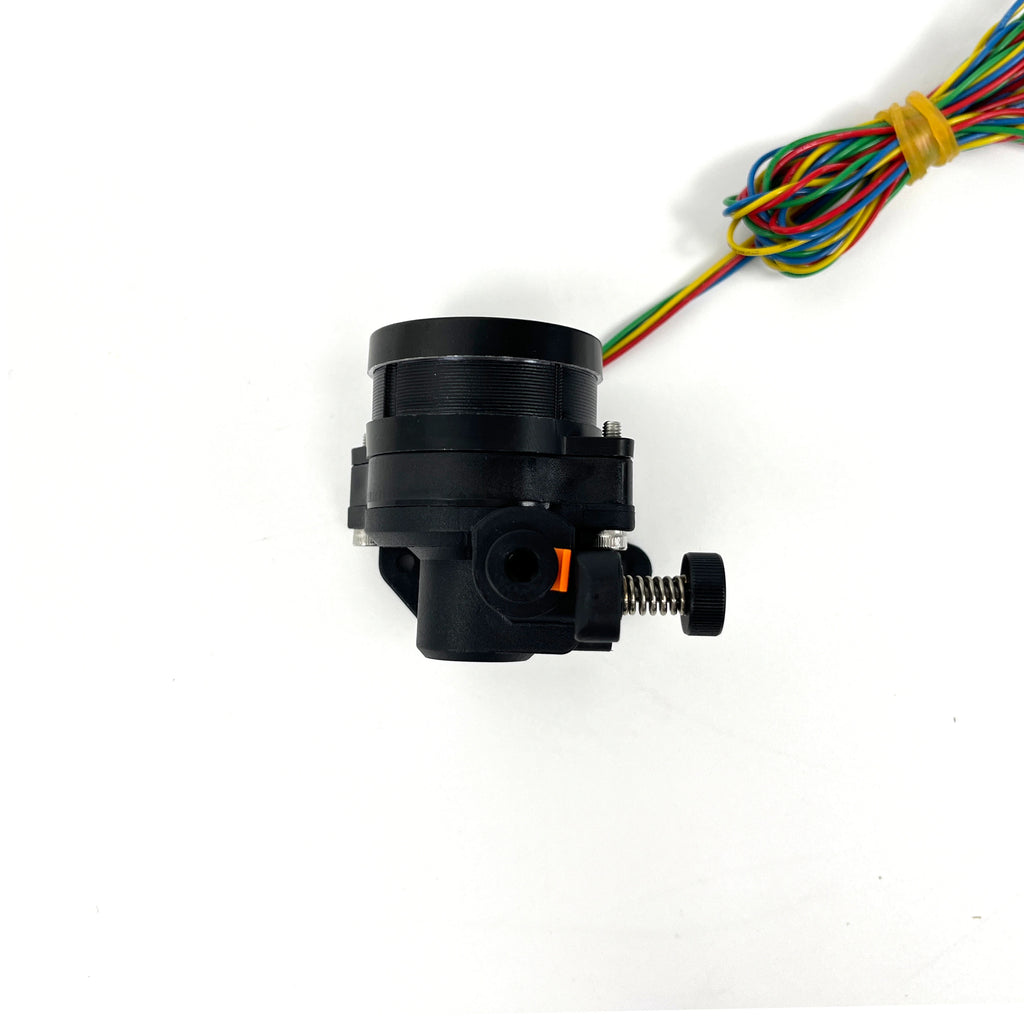

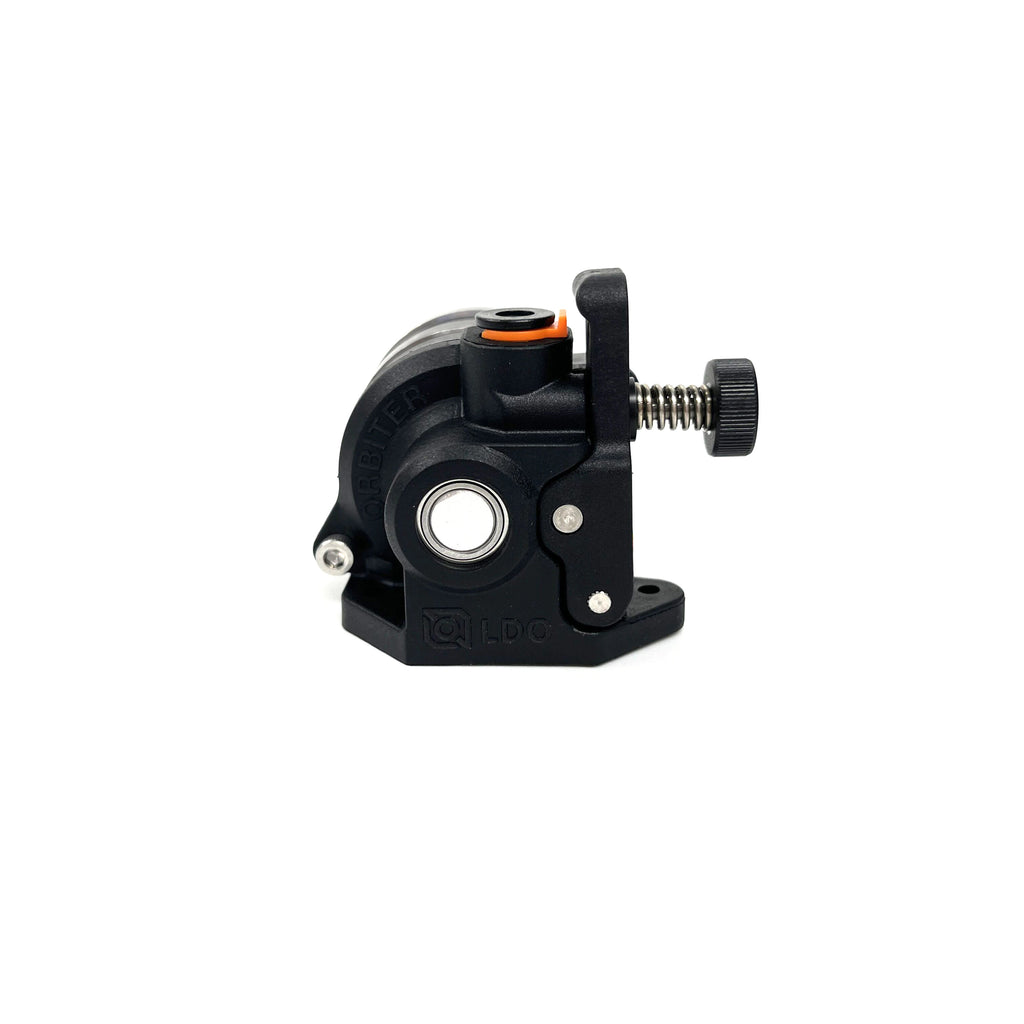

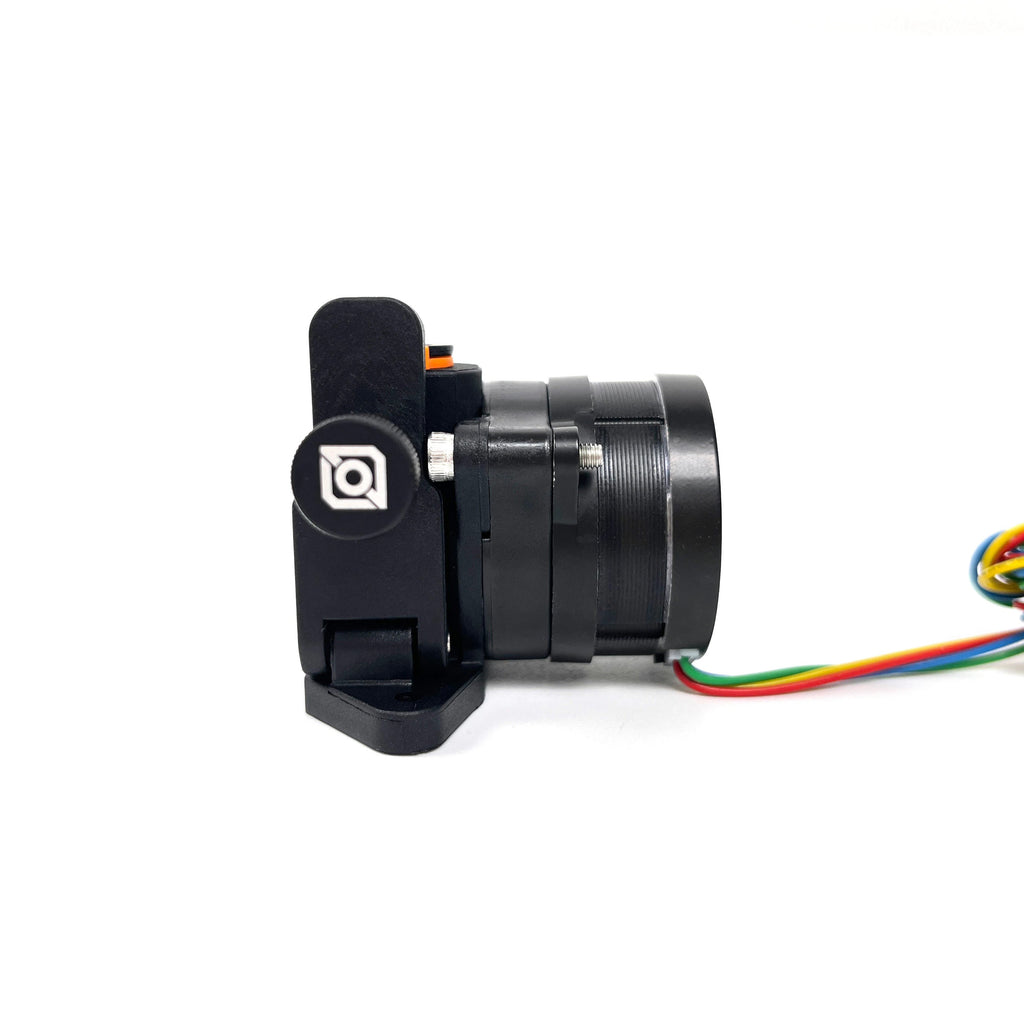

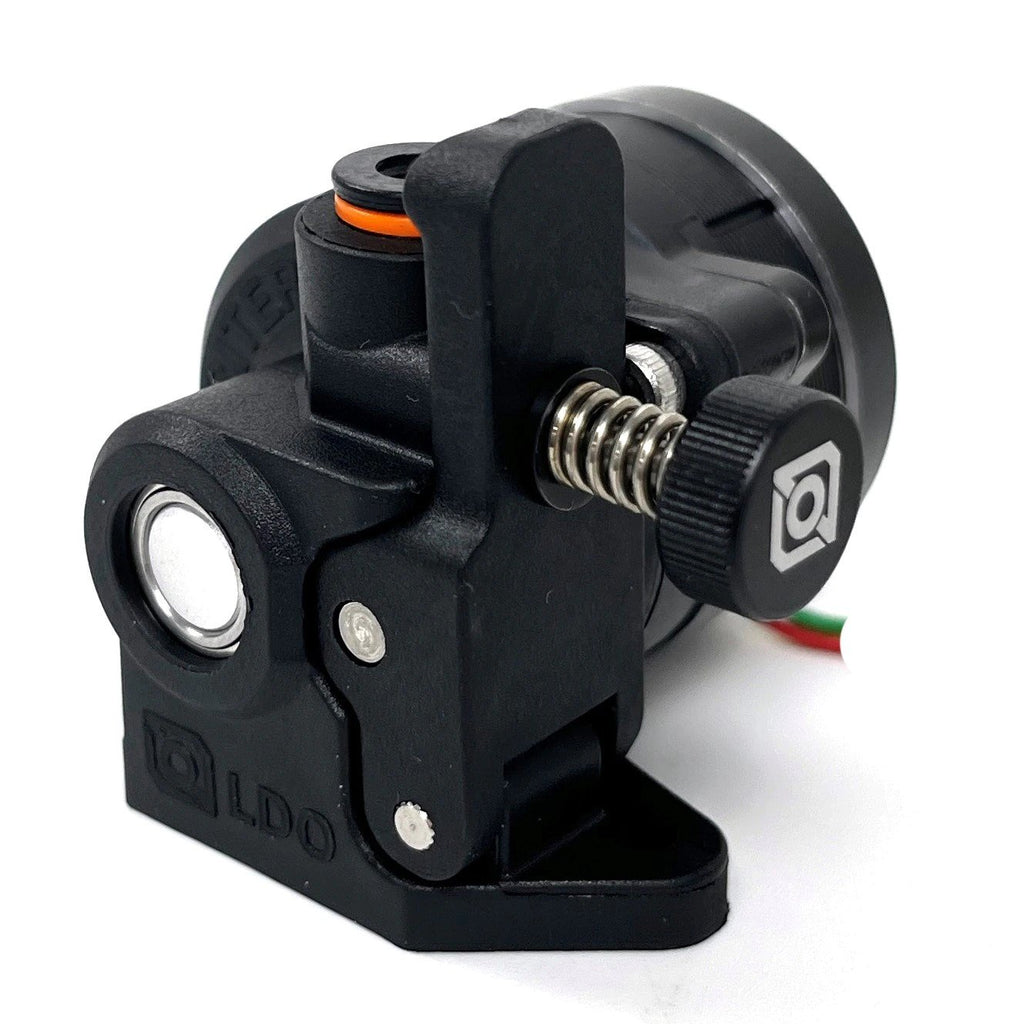

Orbiter V2.0 Direct Drive Extruder

LDO MotorsSKU: LDO-ORB-V2-SM
No reviews

Price:
Sale price$64.99

Pickup available at Tiny Machines 3D Mitchelldale

Usually ready in 24 hours

Description

Tiny Machines 3D is now offering the Orbiter V2.0 from LDO!

Dual Drive Gears (Genuine Bondtech)

135 grams!

Designed by Dr. Lorincz Rober. Manufactured by LDO

Each Orbiter V2.0 that ships from Tiny Machines 3D is inspected to ensure gear alignment and crimps are secured in cabling

Features

  • Shorter drive gears 11mm vs 15mm
  • Hardened filament drive gears manufactured by Bondtech
  • Weight reduced to ~135 grams (v1.5 ~150 grams)
  • Smaller more compact dimensions (11.6% shorter)

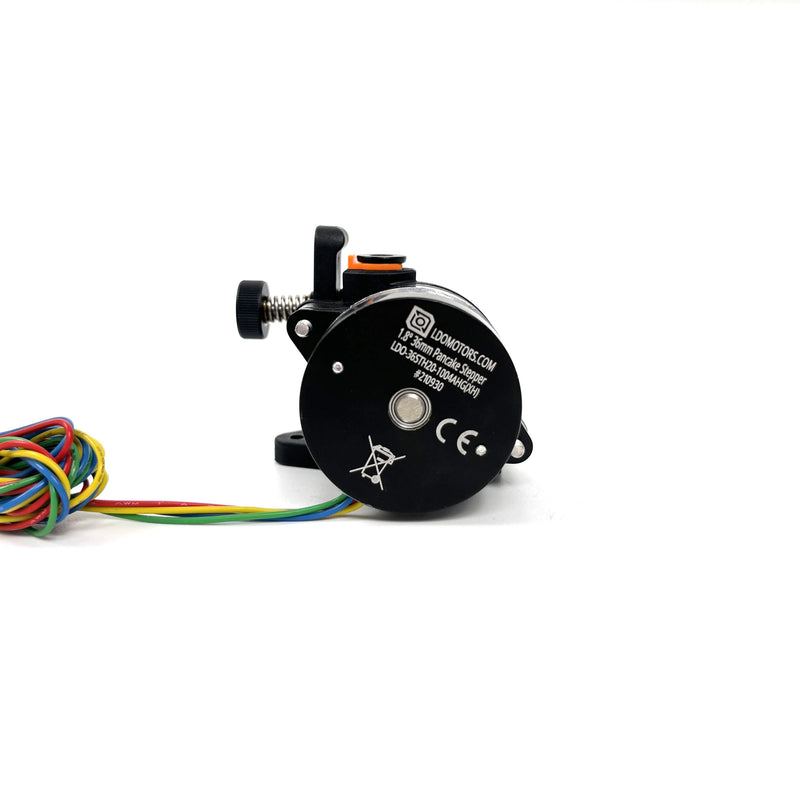

  • New motor design offers~40% increase in pushing force in real printing conditions and much improved acceleration performance
  • Flipped drive gears –filament path closer to the extruder center for a more balanced design and perfect fit on delta printers as well
  • Stainless steel filament exit guide with 0.2-0.3mm clearance to drive gears for best TPU printing experience and extreme wear resistance when using abrasive filaments.
  • High temperature resistant injected housings, GPA12
  • Machined PEEK secondary drive gear sleeve

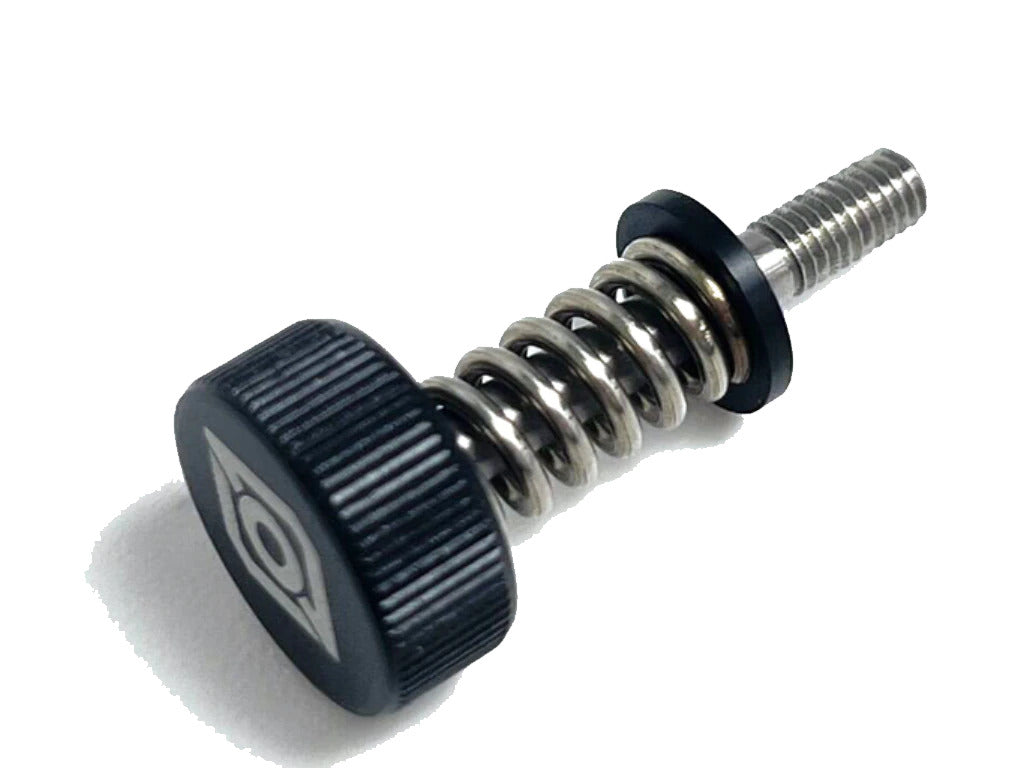

  • Tension mechanism with grab screw design (Captive Grab Screw)
  • Mounting screws in line with filament exit path –improving housing stiffness and easier mounting
  • Perfectly aligned filament path
  • New smaller and better PTFE input coupler
  • Motor position rotated by additional 10 degrees for easier maintenance and assembly
  • Filament sensor add on with auto load and unload button add on feature
  • And many more small changes to improve mechanical accuracy and design look
