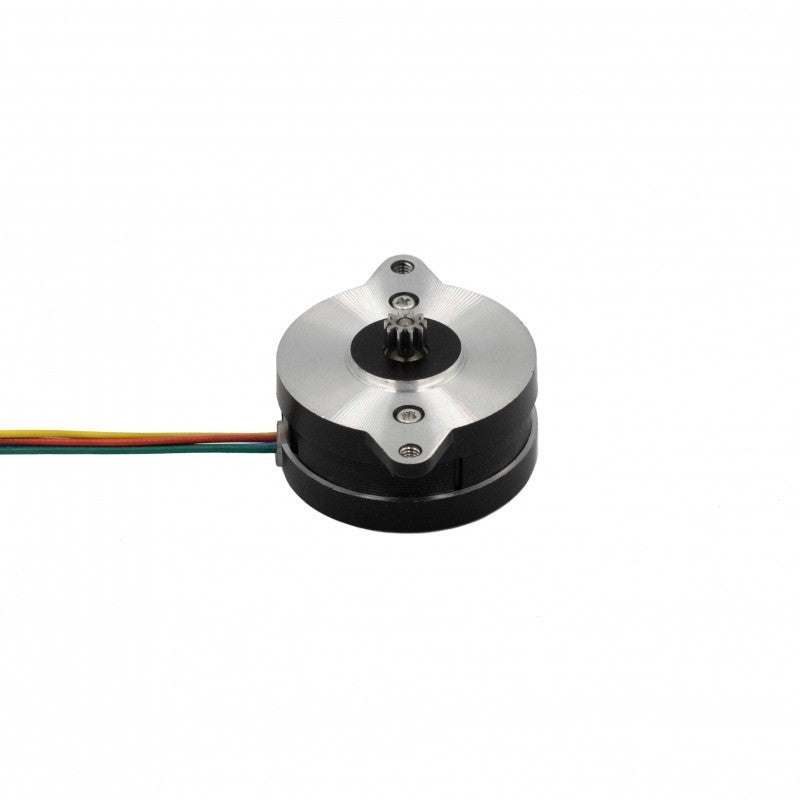

LDO NEMA 14 High Temperature Stepper Motor - 36STH20-1004AHG (XH)

LDO MotorsSKU: LDO-36STH20-1004AHG
No reviews

Sale price$19.95


This NEMA 14 high temperature rated NEMA 14 stepper motor from LDO Motors offers a 1.8 degree step angle, high torque, and 20mm body length. Heat resistant up to 180C; includes 1 Meter of pre-terminated (JST-XH) teflon insulated wires for motherboard connection. Manufactured by LDO Motors.


Step Angle : 1.8° ±5% Step Angle.
Shaft Diameter: 2.5mm (pressed on 10 tooth gear)
Rated Current: DC 1.0A / Phase
Temperature Rating: 180C
Wiring: 1m JST-XH pre-terminated high temperature wiring harness
Weight: 86g


Datasheet and Drawing
