12V 5010 Axial Fan (STEALTH)

Tiny Machines 3DSKU: LZ-12V-CR105010A-SM
No reviews

Sale price$10.99
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.

Sign up for restock notifications

Notify Me

Pickup currently unavailable at Tiny Machines 3D Mitchelldale


This fan is a QUIET replacement the motherboard cooling fan in your Creality CR series (12V) 3D Printer.

This fan WILL NOT work on the Ender 3, Ender 3 PRO, Ender 4, CR-10S PRO, CR-20, CR-20 PRO or CR-X. All of these machines are 24V and require 24V fans.

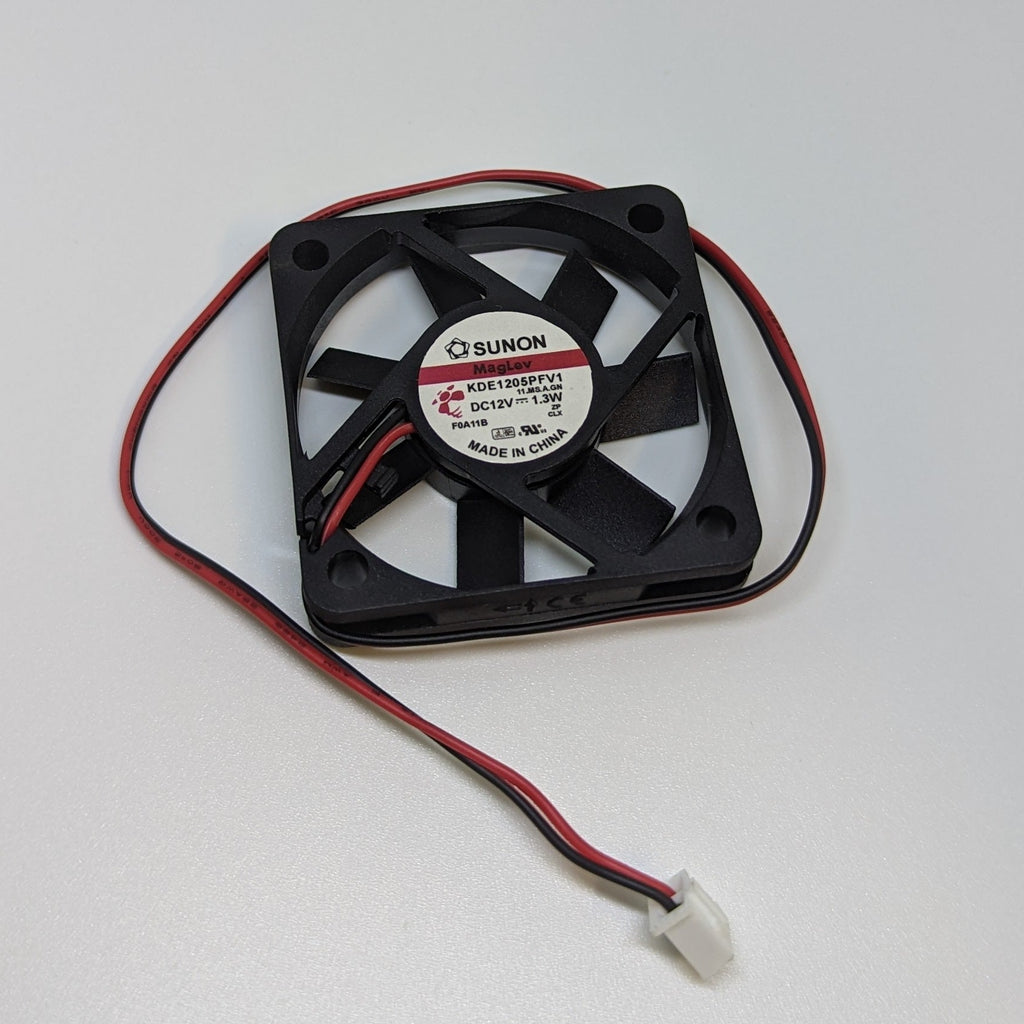

Brand Name/ Type: Sunon / Ball Bearing (VAPO) Axial

Model Number: KDE1205PFV1

Size: 50*50*10mm

Package Includes:

1 x 12V 5010 Axial Fan


Technical Specification

Rated Voltage 12 VDC
Operating Voltage Range 4.5~13.8 VDC
Starting Voltage
4.5VDC (25 dec.C POWER ON/OFF)
Rated Speed
5200 RPM +/- 10%
Air Delivery
13 CFM / MAX 15CFM
Static Pressure
0.14 Inch-H2O / MAX 0.16 Inch-H2O
Rated Current 0.11 AMP
Rated Power 1.3 WATTS
Noise Level
30 dB(A) / MAX 38 db(A)
Direction of Rotation
Counter Clockwise viewed from front of Fan Blade
Operating Temperature
-10 to +70 deg. C
Storage Temperature
-40 to +70 deg. C
Bearing System
Vapo Bearing System
Weight 20g
UL/CUR/TUV/CE Approvals
Locked Rotor Protection
Automatic Restart Capability
Termination JST - 2 Pin
Wire Length ~
