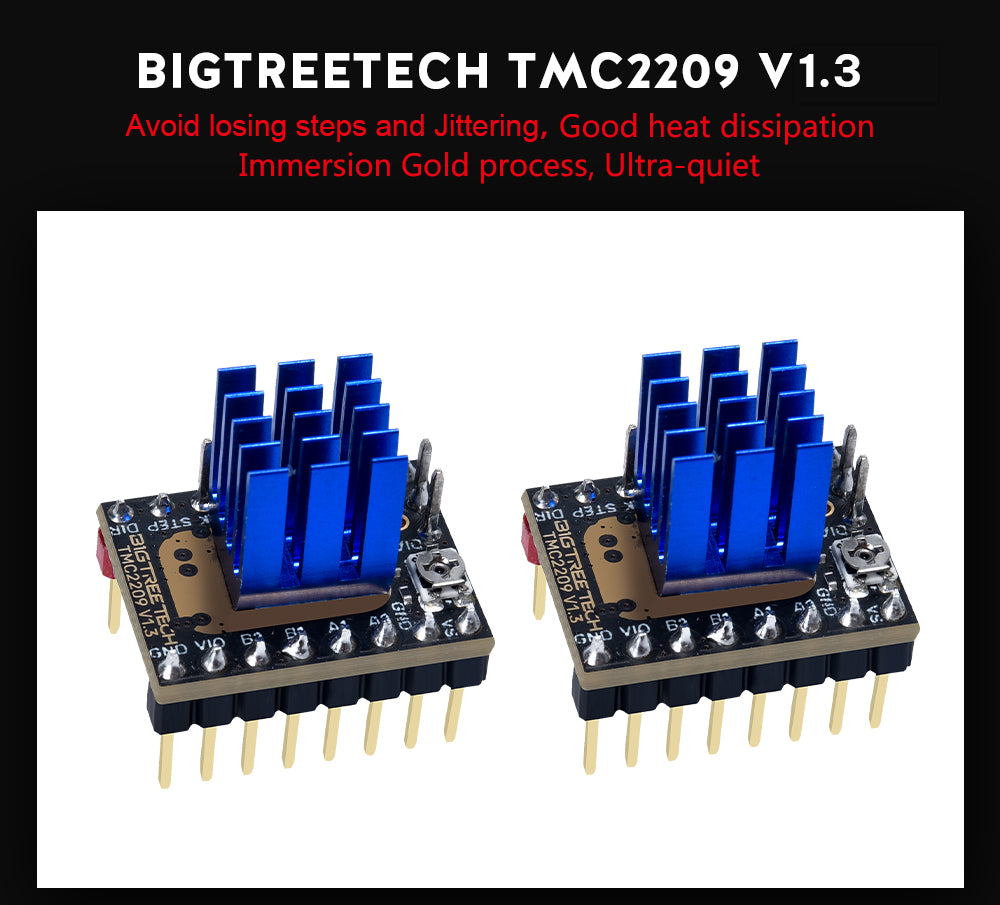

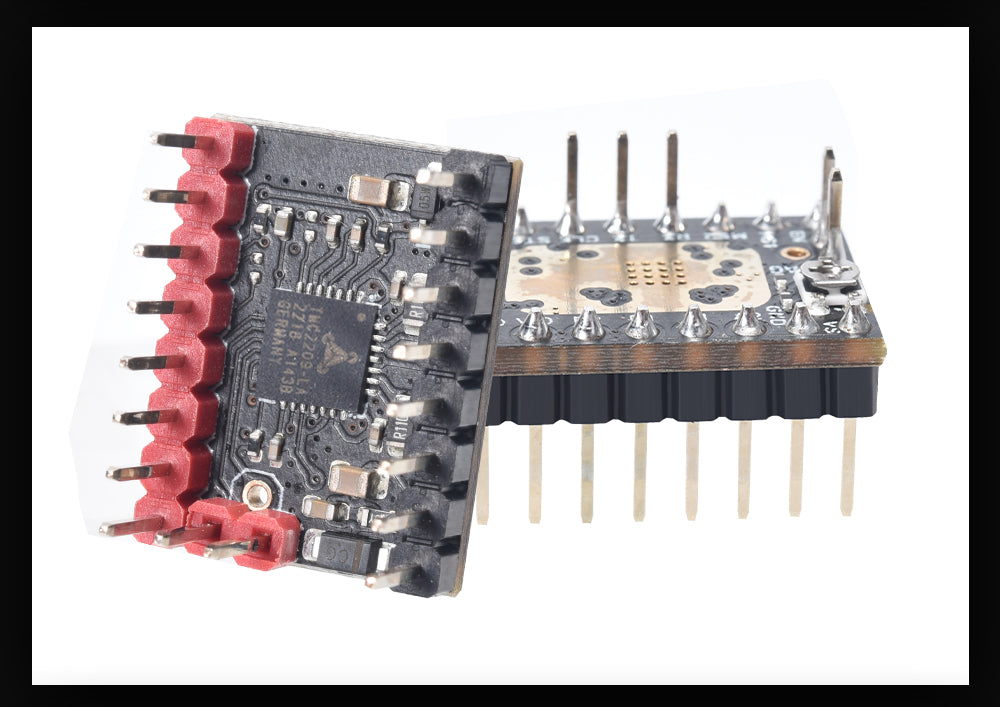

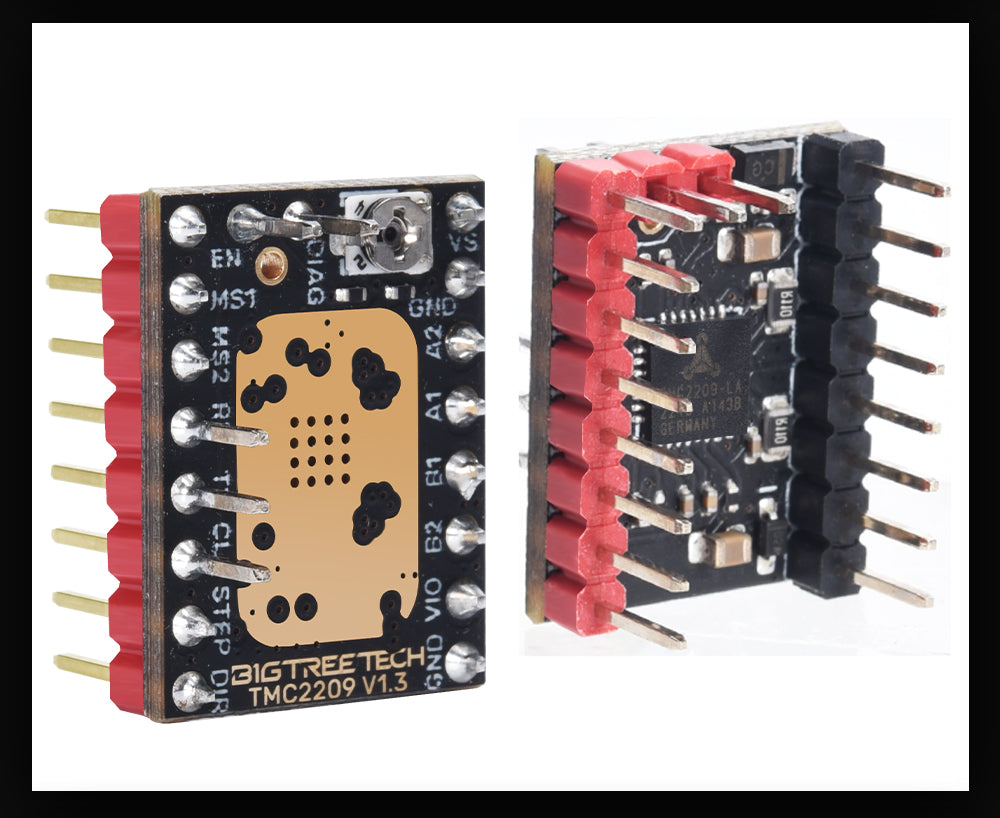

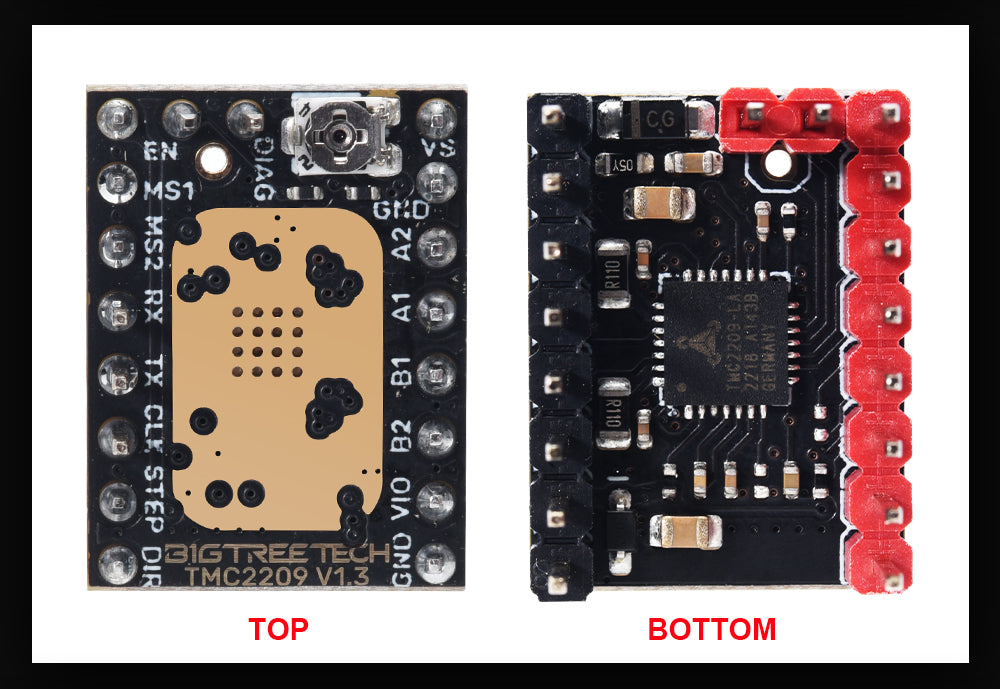

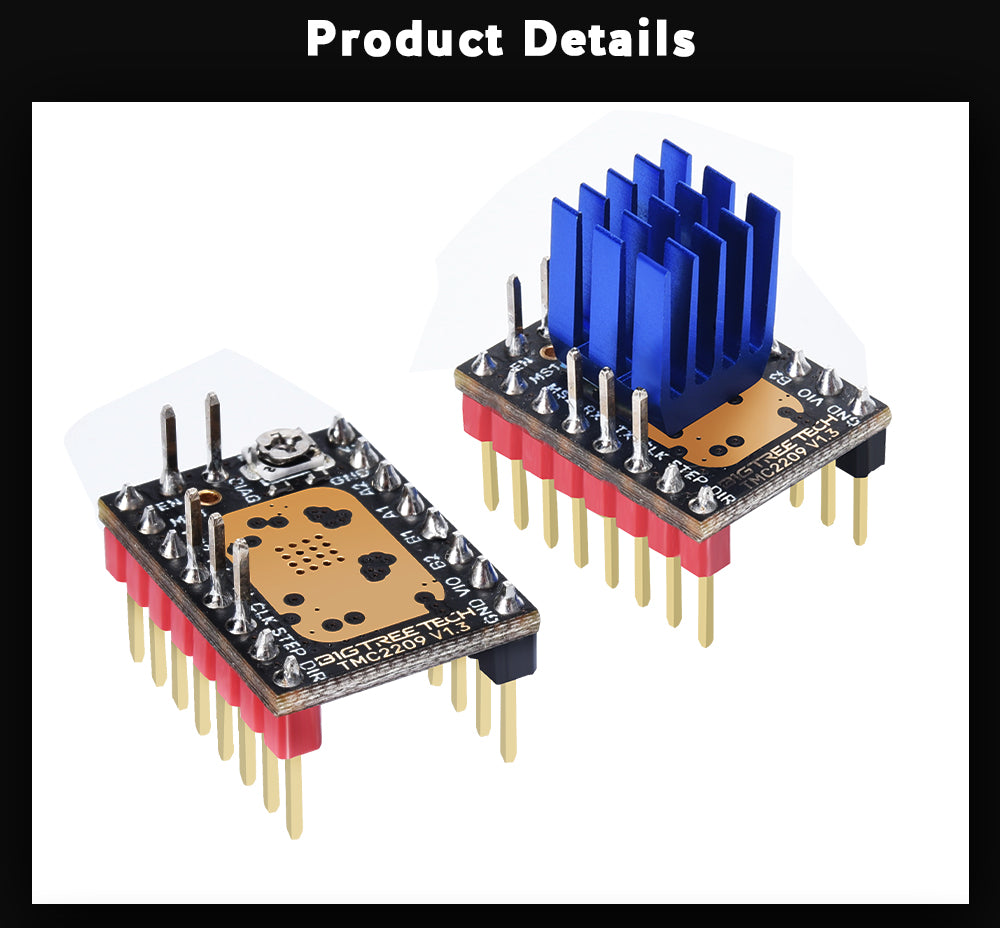

The BIGTREETECH TMC2209 V1.3 is a stepper motor driver board designed for 3D printers and other CNC machines. It is known for its advanced features and high performance.

The board supports up to 2.8A of current per phase, and can operate in stealthChop2 mode for ultra-quiet operation. It also features sensorless homing, stall detection, and other advanced features that make it ideal for high-performance applications.

The TMC2209 V1.3 is easy to install and use, with a simple and intuitive interface that allows users to configure the driver to their specific needs. It is compatible with a wide range of 3D printer control boards, and can be easily integrated into most existing systems.

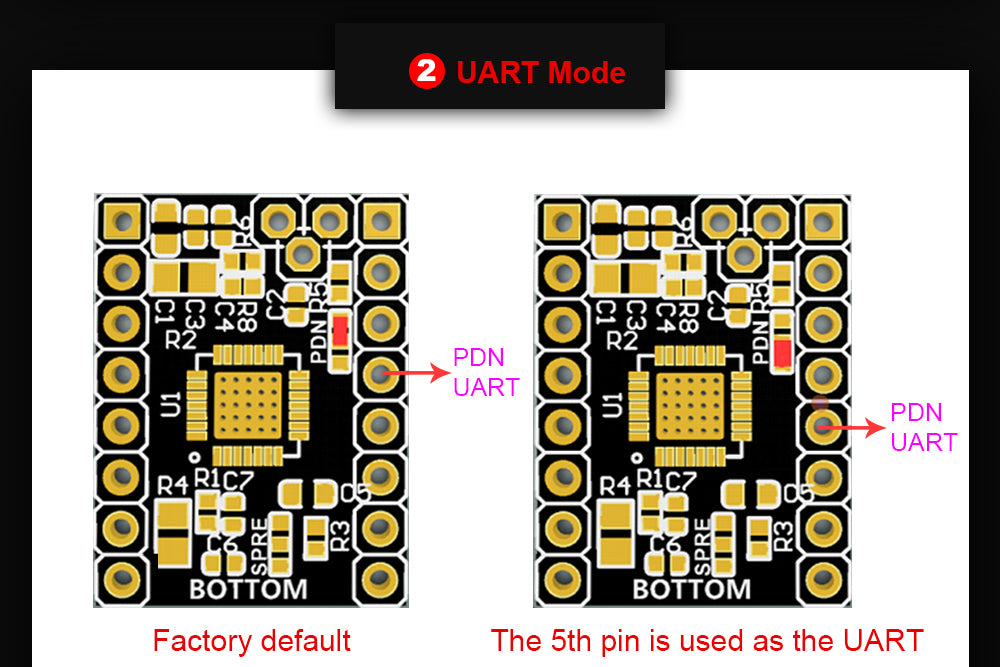

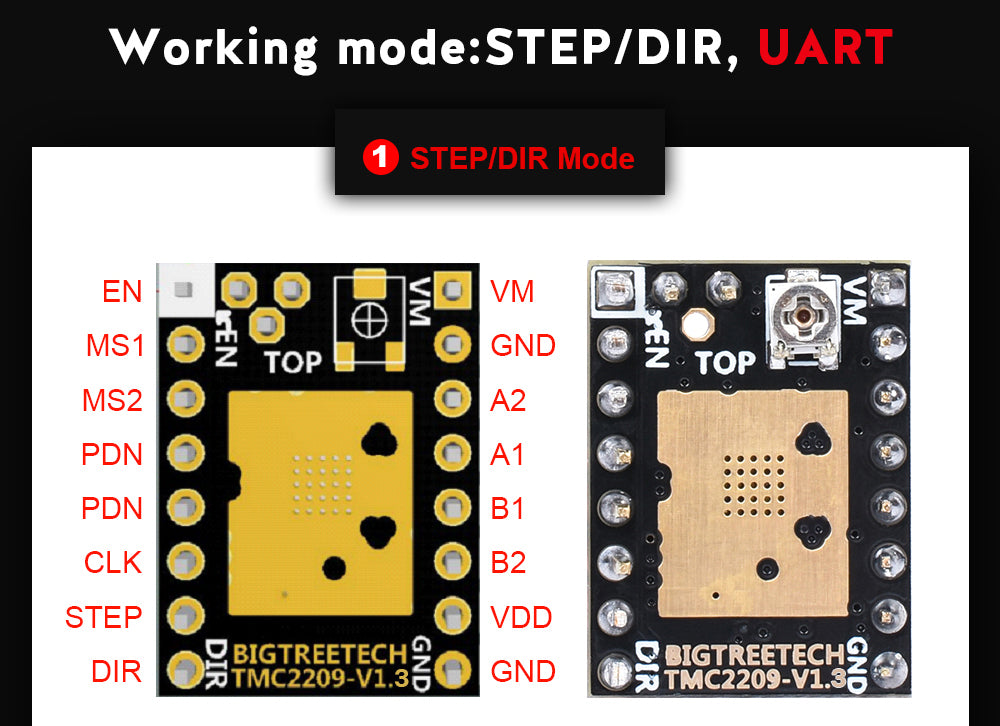

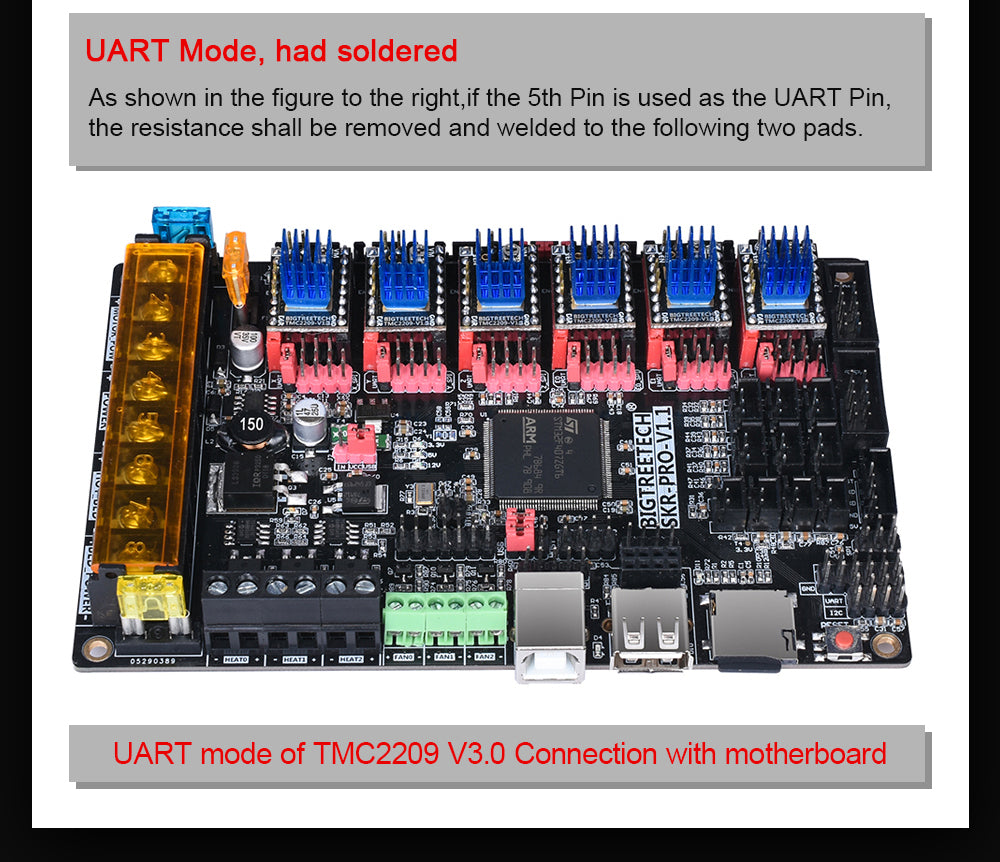

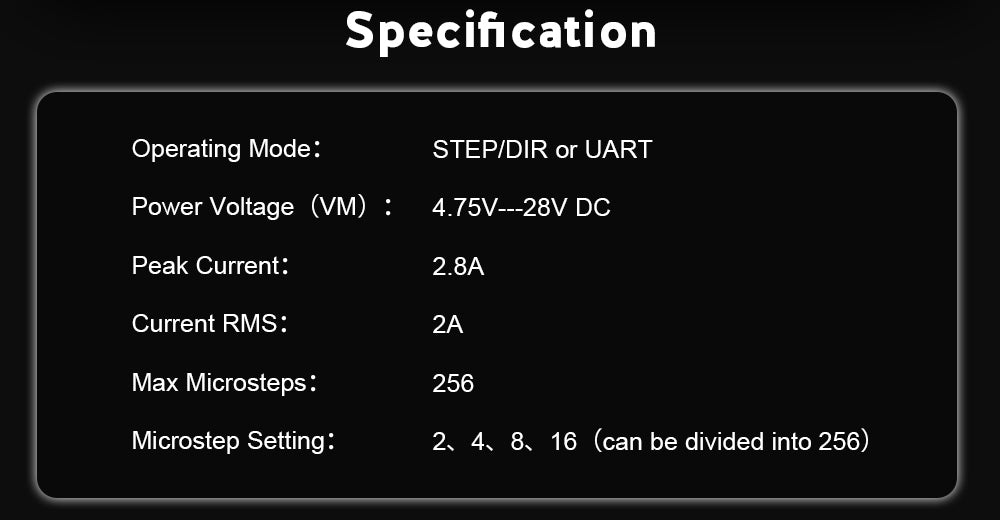

  • Operating Mode: STEP/DIR or UART
  • Power Voltage (VM): 4.75V-28V DC
  • Peak Current: 2.8A
  • Current RMS: 2A
  • Max Microsteps: 256

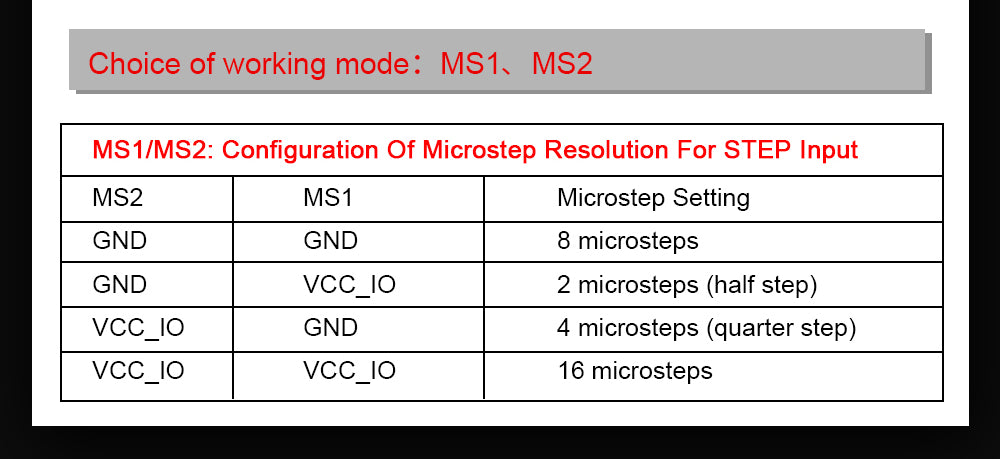

  • Microstep Setting: 2. 4. 8. 16 (can be divided into 256)

Picture Description
