Description

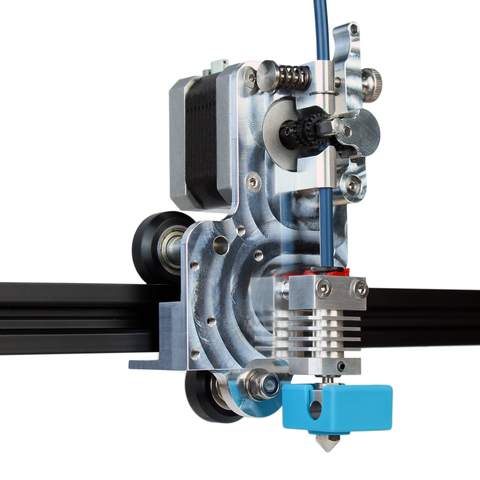

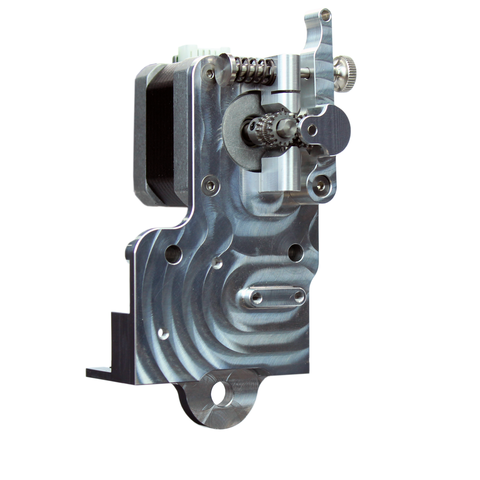

Micro Swiss Direct Drive Extruder is a drop in system for CR10 / Ender Printers
- No modification required, simple plug and play
- No printed brackets or sandwiches
Features:
- Dual-drive train
- Hardened tool steel, CNC precision cut gears
- Adjustable filament grip
- Easy filament loading
- Short, highly constrained filament path
- Prints flexible filaments with high speed and accuracy
- Outstanding extrusion control
- Lightweight aluminum body
Fits:
- CR-10 (Will NOT directly fit CR10 V2, V3)
- CR-10-S5
- CR-10-S4
- CR-10S
- CR-10S Pro V1 *Fits with printable Fan Shroud
- CR-10S Pro V2 *Fits with printable Fan Shroud
- CR-10 Max *Fits with printable Fan Shroud
- CR-10 MINI
- CR-20
- CR-20 Pro
- Ender 2
- Ender 3
- Ender 3 Max *Fits with printable Fan Shroud And PTFE bracket
- Ender 3 Pro
- Ender 3 V2 *Fits with printable Fan Shroud
Installation Instructions Video by My Tech Fun for Ender 3 V2

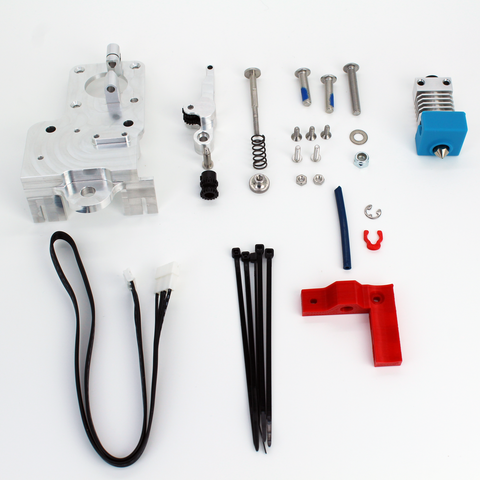

What's in the box:
- Stepper motor and roller wheels are NOT included

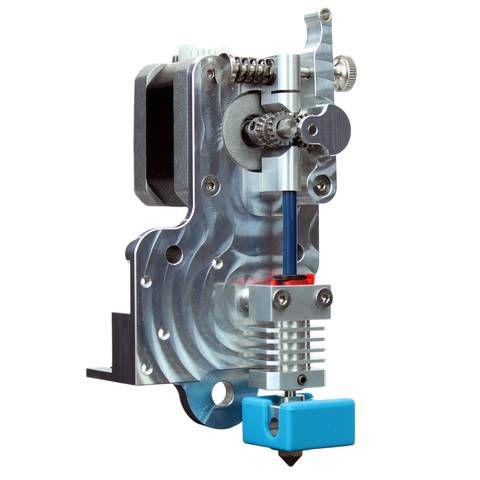

- 1 x Micro Swiss All Metal Hotend (If option selected)
- 1 x Main Extruder body
- 1 x Extruder Lever
- 1 x Spring Pin
- 1 x Spring
- 2 x Gears
- 1 x Knob
- 1 x Shoulder Pin
- 2 x M5 20mm Nylon Patch Bolts
- 1 x M5 30 Bolts
- 1 x M5 Nylon Lock Nut
- 1 x M5 Washer
- 1 x Extension Cable
- 3 x M3 Motor Mounting Screws
- 2 x M3 Bolts
- 2 x M3 Nuts
- 5 x Zip Ties
- 1 x Printed Bracket
- 1 x Beveled Capricorn Liner
